KalyxX IPS Redline – Swiss Aqua Technologies
€139,00
Extended warranty 5 years! Proven effectiveness – reduces limescale build-up by 76%. Works reliably for at least 10 years without any maintenance. It reliably reduces the negative effects of limescale in water with a hardness of up to 25 °dH (4,464 mmol/l).
Out of stock
Description

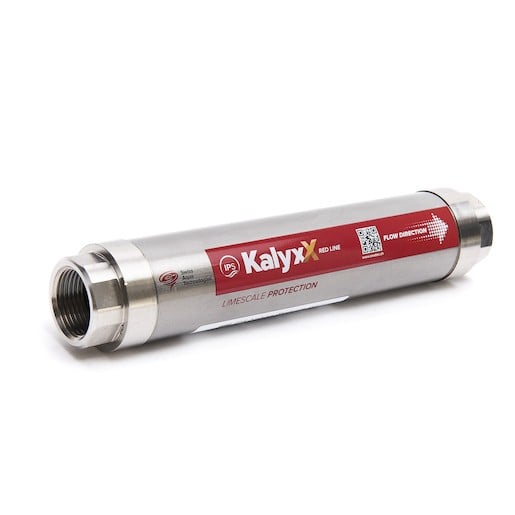

IPS KalyxX RedLine
Reduction of limescale formation with confirmed efficiency 76 %
Key features
- Reduces creation of Limescale on water supply elements (pipework, valves, taps, shower heads, waterheating coils of home appliances) – efficiency of 76%.
- New Patented technology TGP – Turbulent Galvanic Polarisation – NO CHEMICALS, NO EXTERNAL ENERGY.
- Suitable for COLD (drinking) water – NRL Certificate for direct permanent contact with drinking water.
- Health safety product – each part of IPS is made from material suitable for contact with drinking water.
- Safe product – Verified Hydraulic properties – TSU test report about Presure drop, Pressure resistance and Strength.
- Durable body (Stainless steel 1.4301) and internal parts – 2 year warranty, works well at least 10 years.
Specifications
| Connection | Female NPT/G x Female NPT/G |
| Patented Discs Composition | |
| Set of neodymium magnets at the input and output | |
| Maximum Flowrate | Up to 7 m3/h* |
| Material | Stainless Steel |
| Pipe Type | Copper, CPVC, PVC, PEX |
| Maximum Pressure Drops | 43 Pa – 692 Pa* |
| Operating Temperature (inlet) | 0 °C to 85 °C |
| Optimal temperature for maximum efficiency Min/Max (inlet) | 0 °C to 60 °C |
* depends on model
Connection diagrams
| Model | Connection | Diameter (mm) |
Length (mm) |
Weight (g) |
Max. Pressure (Bar/MPa) |
Max. Flow (m3/hour) |
Pressure Drop at max. flow (mBar/Pa) |
Min. Flow (l/min) |
|---|---|---|---|---|---|---|---|---|
| RedLine 1/2″ | G 1/2″ (female) |
50 | 245 | 910 | 10 / 1 | 1 | 0,4416 / 44,16 | 5 |
| RedLine 3/4″ | G 3/4″ (female) |
50 | 245 | 890 | 10 / 1 | 3,2 | 4,38 / 437,78 | 5 |
| RedLine 1″ | G 1″ (female) |
50 | 251 | 930 | 10 / 1 | 4 | 6,92 / 692,03 | 5 |
| RedLine 5/4“ | G 5/4“ (female) |
50 | 480 | 2400 | 10 / 1 | 5 | 13,84 / 1 384,06 | 5 |
| RedLine 6/4“ | G 6/4“ (female) |
50 | 480 | 2500 | 10 / 1 | 7 | 13,84 / 1 384,06 | 5 |
Pressure
Installation
The IPS KalyxX device should not be placed in close proximity to devices producing strong electromagnetic fields, such as especially electric motors, pumps. The cable, whether free or built into the wall or a regular small appliance, does not emit enough of an electromagnetic field to affect its function, so you can easily install the KalyxX near a regular electric current conductor.
Recommended Water Properties
Generally recommended water properties for use with IPS KalyxX*:
| PH | 6.5 – 8.5 |
| Iron | < 0.5 mg/l |
| Hardness | < 32 °dH (5.696 mmol/l) |
| EC | < 150 ms/m |
| TDS | < 950 ppm |
| Salinity | < 2000 mg/l |
In water with high chlorine content, the lifespan of IPS technology is reduced by about 50%, as chlorine destroys IPS electrodes.* If the water properties differ from the recommendations, please contact us for individual assessment.
Additional information
| Weight | 1,5 kg |
|---|
